Digital Audio System
ADCs: 24-bit
DACs: 24-bit
Digital Signal Processing: 32-bit floating point
Line Inputs (1–2)
(2) balanced 1/4” (6.35 mm) TRS or unbalanced 1/4” (6.35 mm) TS
Frequency Response: 20 Hz – 20 kHz (+0.2/−0.5 dB)
Signal-to-Noise Ratio: 107 dB (1 kHz, +6 dBV, A-weighted)
THD+N: 0.004% (1 kHz, +6 dBV, 0 dBFS)
Max Input Level: +12 dBV
Sensitivity: −10 dBV
Gain Range: 27 dB
Line Outputs (1–2)
(2) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response: 20 Hz – 20 kHz (+0.2/−0.5 dB)
Dynamic Range: 112 dB (A-weighted)
THD+N: 0.004% (1 kHz, 0 dBFS)
Maximum Output Level: +6 dBV
Output Impedance: 100 Ω
Headphone Output
(1): 1/8” (3.5 mm) stereo headphone output
Frequency Response: 20 Hz – 20 kHz (+0.2/−0.5 dB)
Dynamic Range: 112 dB (A-weighted)
THD+N: 0.006% (1 kHz, 10 mW per channel into 32 Ω)
Maximum Output Level: 40 mW RMS (per channel into 32 Ω)
Mechanical
Keys: 37 synth-action keys with aftertouch
Wheels: Pitch bend and modulation wheel

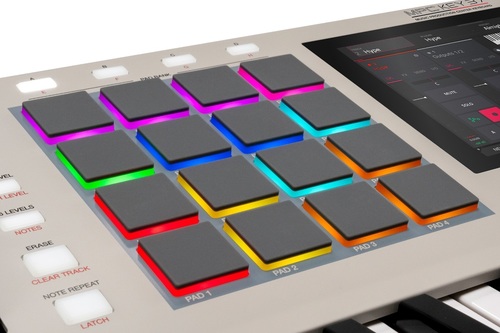

Pads: (16) velocity- and pressure-sensitive RGB-backlit pads, (8) banks accessible via Pad Bank buttons

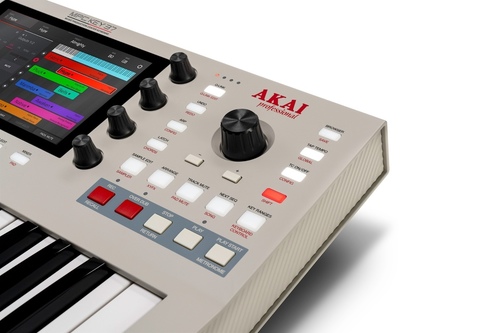

Knobs: (4) 360° touch-sensitive Q-Link knobs, (4) Q-Link knob columns accessible via Q-Link button, (1) 360° data encoder with push function
Buttons: (38) dedicated function buttons, white/red/green backlit

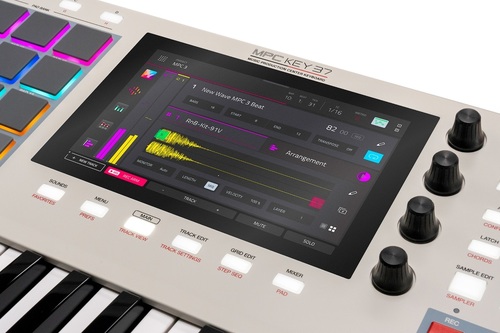

Display: 7” (177 mm diagonal) full-color LED-backlit touchscreen
CPU
Processor: Eight-core ARM® processor
RAM: 4 GB
Internal Storage: 64 GB
File System Compatibility
File Systems: exFAT (read/write, recommended), FAT32 (read/write), NTFS (read/write), EXT4 (read/write), HFS+ (read only)
Audio Formats: AIF/AIFF, FLAC, MP3, OGG, WAV
Wireless
Wi‑Fi Frequency: 2.4 GHz / 5 GHz
Wi‑Fi Standard: 802.11a/b/g/n/ac
Wi‑Fi Max Power: 2.4 GHz: +17 dBm, 5 GHz: +17 dBm
Bluetooth Version: 5
Bluetooth Profile: HID
Bluetooth Max Power: +10 dBm
Connections
(2): 1/4” (6.35 mm) TRS inputs (1 stereo pair)
(1): 1/4” (6.35 mm) TRS sustain pedal input (TS compatible)
(1): 1/4” (6.35 mm) TRS footswitch pedal input (TS compatible)
(1): 1/4” (6.35 mm) TRS expression pedal input (TS compatible)
(2): 1/4” (6.35 mm) TRS outputs (1 stereo pair)
(1): 1/4” (6.35 mm) stereo headphone output
(4): 1/8” (3.5 mm) TRS CV/Gate jacks (8 outputs total)
(1): USB 3.0 Type‑A host port
(1): USB 3.0 Type‑C host/device port
(1): 5‑pin MIDI input
(1): 5‑pin MIDI output
(1): Power adapter input
Power
Power: 12 V, 3 A, center‑positive (via included power adapter)
Dimensions & Weight
Dimensions: (W × D × H)58.2 × 31.5 × 8.5 cm
Weight: 4.36 kg
